Three Laser Soldering Processes: A Complete Analysis of Advantages and Disadvantages
Hello everyone! Today, let's delve into a core topic in the field of electronics manufacturing: Do you know the different types of laser soldering processes? Under the current trend of increasingly miniaturized electronic devices, everything from our everyday phones and computers to automotive electronics and medical equipment relies on precise and reliable soldering technology. Laser soldering, with its core advantages of non-contact heating and precise temperature control, has become the preferred choice for many high-end manufacturing scenarios. Among these, there are three mainstream processes: Laser Solder Wire Soldering, Laser Solder Ball Soldering, and Laser Solder Paste Soldering. Next, let's break them down one by one, discussing the unique advantages of each process and the fields and products where they are widely applied.
NO.1: Laser Solder Wire Soldering.
Its core advantages lie in its extremely high flexibility and strong adaptability. This process involves a wire feeding mechanism delivering solder wire in real-time to the welding point. The laser precisely heats the pad and melts the solder wire to complete the joint. It does not require pre-placing solder material and can adjust the wire feed speed and solder amount in real-time based on the size and shape of the joint. Whether it's a standard planar joint or a special joint in a deep cavity or with an irregular shape—such as deep-cavity connectors or through-hole pins in automotive electronics—it can achieve welding without dead angles by adjusting the wire feed angle. Additionally, its equipment entry barrier is relatively low, as it doesn't require complex pre-placement systems, making the initial investment more accessible. It is particularly suitable for small-to-medium batch, multi-specification production scenarios. Beyond applications like wire harness terminals and connector soldering in the automotive electronics field, it is also widely used in products such as wire soldering in home appliance electronics and through-hole component soldering in industrial control equipment. It is the most adaptable of the three processes for handling complex scenarios.

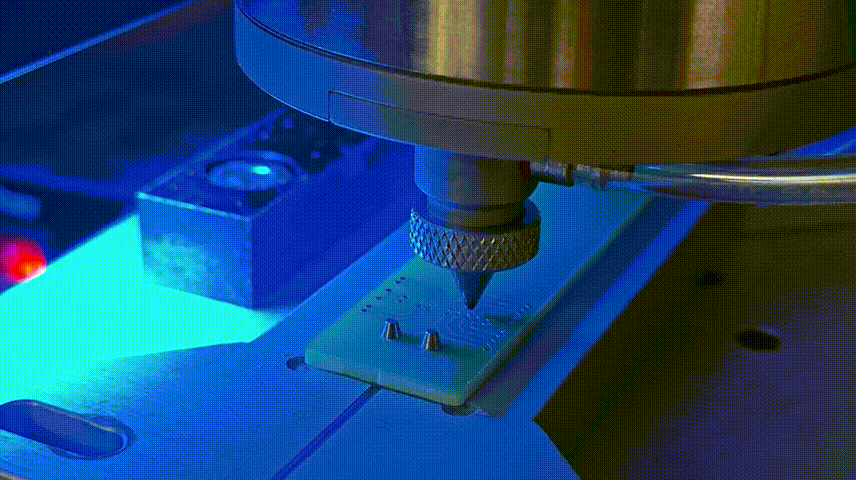

The second type, Laser Solder Ball Soldering, can be called the "King of Precision" among the three processes.
Its advantages are concentrated in ultra-high precision and an extremely small heat-affected zone. The core principle involves precisely delivering tiny solder balls, ranging from tens to hundreds of microns in diameter, to a nozzle via a precision ball distribution system. A laser pulse then instantaneously melts the ball, and it forms under nitrogen protection. This non-contact soldering does not exert any mechanical pressure on the workpiece, and the heat-affected zone can be controlled within 0.05 mm, completely avoiding damage to surrounding heat-sensitive components. Precisely because of this accuracy, it has become an essential process in the field of precision electronics, widely used in medical devices and high-end consumer electronics. For example, core components like micro-sensors in medical devices and pacemakers, as well as camera modules and RF antennas in our mobile phones, and micro-control chips in drones—products with extremely high demands for soldering precision and reliability—almost invariably rely on the support of laser solder ball soldering.
The third type is Laser Solder Paste Soldering.
Its greatest advantage is high welding efficiency, making it particularly suitable for large-volume, standardized production. This process requires pre-placing solder paste on the pads beforehand using screen printing or dispensing equipment. The laser then heats and melts the paste in batches to form the joints, following a "pre-place material, then batch solder" model. The laser's energy can be precisely controlled, ensuring uniform and stable soldering quality for each joint. Moreover, it is also a non-contact process, generating no static electricity or mechanical stress, making it friendly to fragile workpieces like FPC flexible printed circuits. Its main application areas are concentrated in high-volume consumer electronics and the new energy sector. Examples include soldering chip components like resistors and capacitors on smartphone motherboards, circuit board assembly for tablets, and welding core components in battery management systems and vehicle central control units for new energy vehicles. Well-known mobile phone manufacturers, whose production lines can output tens of thousands of phones daily, rely on the efficient support of laser solder paste soldering.
To summarize, these three laser soldering processes each have their focus: Laser Solder Wire Soldering excels in flexibility, adapting to small/medium batches and multiple specifications. Laser Solder Ball Soldering wins on precision, specializing in precision high-end scenarios. Laser Solder Paste Soldering is strong in efficiency, supporting large-volume, standardized production. Different manufacturing demands correspond to different process choices, which is precisely the key reason why laser soldering can adapt to so many high-end manufacturing fields. I hope today's sharing gives everyone a clearer understanding of laser soldering processes. Did you get it?
