Laser Soldering in Automotive Lighting Manufacturing: Illuminating Intelligent Lighting-Uli Laser Soldering Machine

2025-04-24 09:04:04

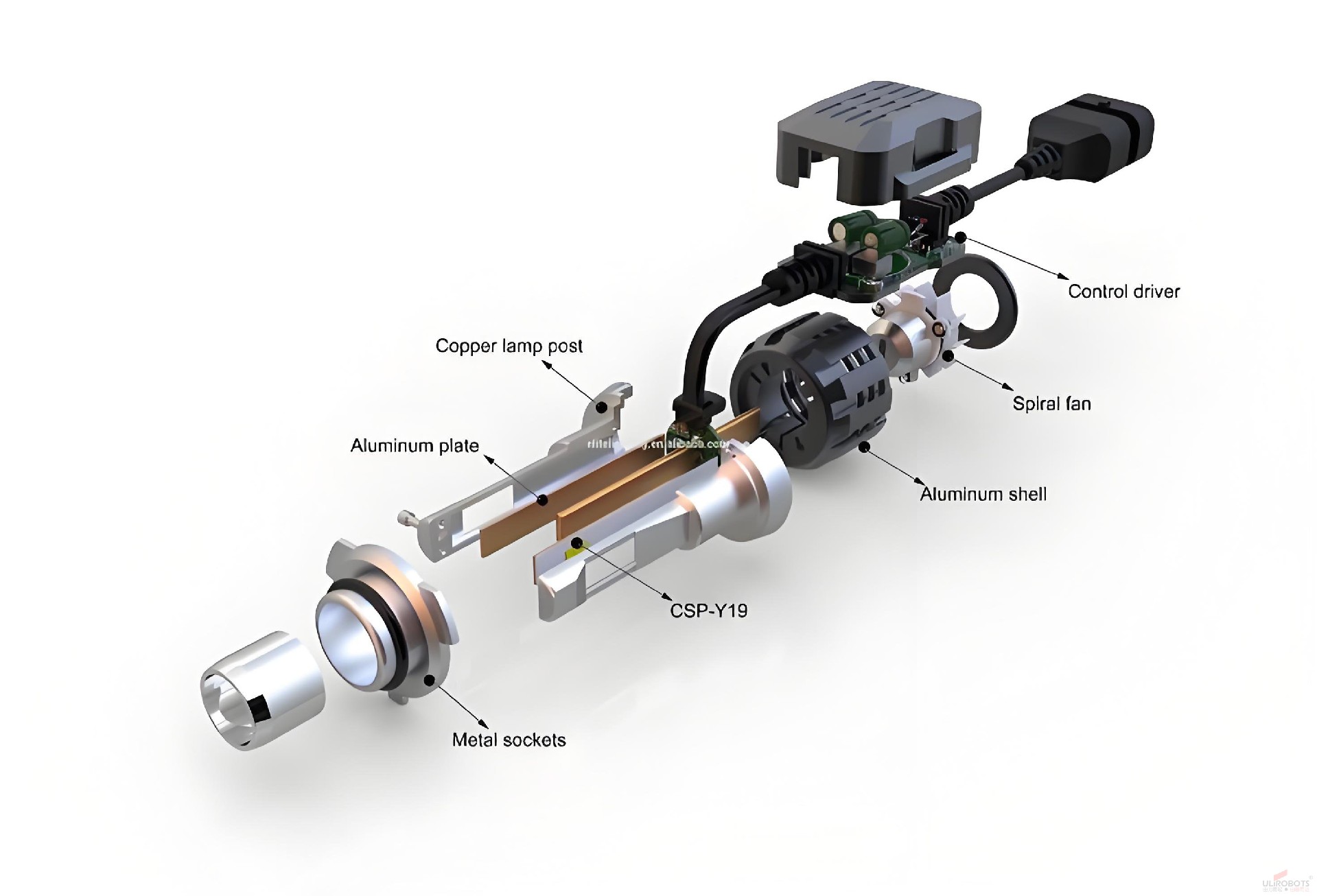

Automotive LED lights have become the mainstream choice for modern vehicle illumination, leveraging their advantages such as high energy conversion efficiency, energy saving, ultra-long lifespan, and high brightness. Compared to traditional halogen and xenon headlights, LED lights offer higher luminous efficacy, lower energy consumption, and reduced heat dissipation. Furthermore, they are more environmentally friendly during manufacturing and recycling processes, making them highly favored by both automotive manufacturers and consumers.

In the manufacturing process of LED lights, the quality of the welding technology directly correlates with the product's optical performance, structural integrity, long-term stability, and durability. Given the delicate nature of LED components and the exceptionally high demands for welding precision and controllability, traditional welding methods often struggle to satisfy these rigorous standards. Laser soldering technology, with its characteristics of non-contact operation, high precision, and rapid response, has become the ideal choice for ensuring the manufacturing quality of LED lights.

As a leading entity in the field of laser soldering equipment, ULiLASER has amassed extensive practical experience in automotive lighting manufacturing, providing professional solutions to numerous renowned automotive brands. Their proprietary constant-temperature closed-loop laser soldering equipment features comprehensive optimization of process details. This ensures highly efficient daily production completion while simultaneously delivering exceptional throughput.

Key Features of ULiLASER Laser Soldering Equipment

Precise Temperature Control: The equipment is equipped with a core-technology temperature control module and utilizes high-precision infrared temperature sensors for real-time feedback and control. This ensures precise and controllable temperature during the welding process, preventing thermal damage to LED chips caused by temperature fluctuations and effectively enhancing product quality.
User-Friendly Operation Software: Our independently developed constant-temperature laser soldering software allows users to easily access and modify various parameters based on different welding requirements. Its intuitive operation significantly improves production efficiency and flexibility.
Comprehensive Data Traceability: Data and video from the welding process can be saved and traced, facilitating effective production process monitoring and management. This capability aids in the timely identification and resolution of production issues, providing reliable assurance for product quality.

Advantages of Laser Soldering Technology in Automotive LED Light Manufacturing

Non-Contact Soldering: The welding process requires no physical contact with LED components, significantly reducing the potential risk of damage to sensitive electronic components. This avoids issues such as pressure damage, displacement, oxidation, and contamination that can occur with traditional contact-based methods, thereby preserving the integrity and functionality of LED chips.
Ultra-High Precision: Achieves micron-level precise control, fulfilling the requirements for small and complex solder joints within LED lights. This ensures the consistency and reliability of solder joints, thereby enhancing the performance and service life of the final product.
High-Efficiency Production: Compared to traditional welding methods, laser welding offers high speed and a small heat-affected zone (HAZ). This significantly shortens production cycles and increases production line throughput. Furthermore, the automated process of laser soldering reduces the need for manual re-inspection, lowering labor costs and minimizing human-induced errors, thereby enhancing production process consistency and product yield.
Strong Adaptability: Can accommodate welding requirements for LED lights of various complex shapes and sizes, providing robust support for innovative design and diversified production in automotive lighting.

Key Application Scenarios for Laser Soldering in Automotive Lighting Manufacturing

Precision Soldering: Applicable for the precise soldering of intricate internal components within LED lights, such as the connection between gold wire and LED chips. As a bridge for electrical connection, the fineness and quality of the gold wire connection directly impact the LED light's electrical performance and reliability. The high precision of laser soldering is capable of ensuring connection stability.
Soldering of Heat-Sensitive Components: LED chips are temperature-sensitive. The characteristic small heat-affected zone (HAZ) of laser welding effectively prevents thermal damage to LED chips, thereby guaranteeing the chip's performance and lifespan.
Soldering of Complex Structures: In automotive headlight DRL (Daytime Running Light) chip LED modules, high-density FPC (Flexible Printed Circuit) must be integrated with the LED board within a miniature space. ULiLASER's laser solder ball soldering machine employs 5-axis coordinated welding technology, driven by imported linear motors, achieving a repeatable positioning accuracy of ±0.02mm. This supports 3D path welding for curved FPC, effectively meeting the welding demands of complex structures. Concurrently, intelligent thermal management technologies such as gradient energy control and real-time infrared monitoring control the temperature rise of the AlSiC substrate to ΔT≤25℃, ensuring the LED chip junction temperature remains ≤120℃, thereby guaranteeing product reliability under stringent environmental conditions.
