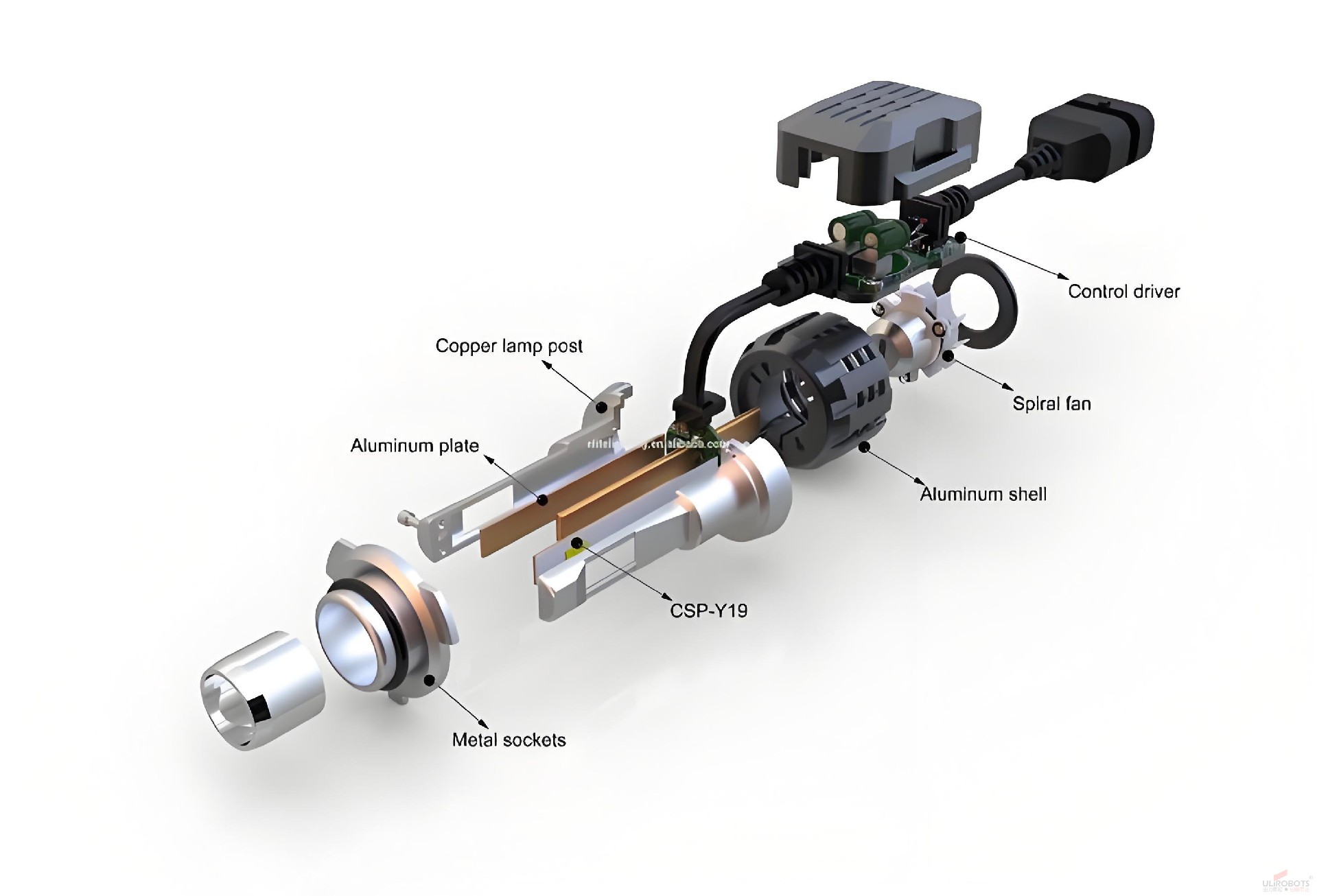

Automotive LED lights have become the mainstream choice for modern automotive lighting due to their high energy conversion efficiency, energy saving capabilities, ultra-long lifespan, and high brightness advantages. Compared to traditional halogen and xenon headlights, LED lights offer higher luminous efficacy, lower energy consumption, reduced thermal emission, and are more environmentally friendly in manufacturing and recycling processes, making them highly favored by automotive manufacturers and consumers.
In the manufacturing process of LED lights, the quality of soldering technology directly impacts the product's optical performance, structural integrity, long-term stability, and durability. Due to the delicate nature of LED light components, there are extremely high requirements for soldering precision and controllability. Traditional soldering methods struggle to meet these stringent standards. Laser soldering technology, with its non-contact nature, high precision, and rapid response characteristics, has become the ideal choice for ensuring the manufacturing quality of LED lights.

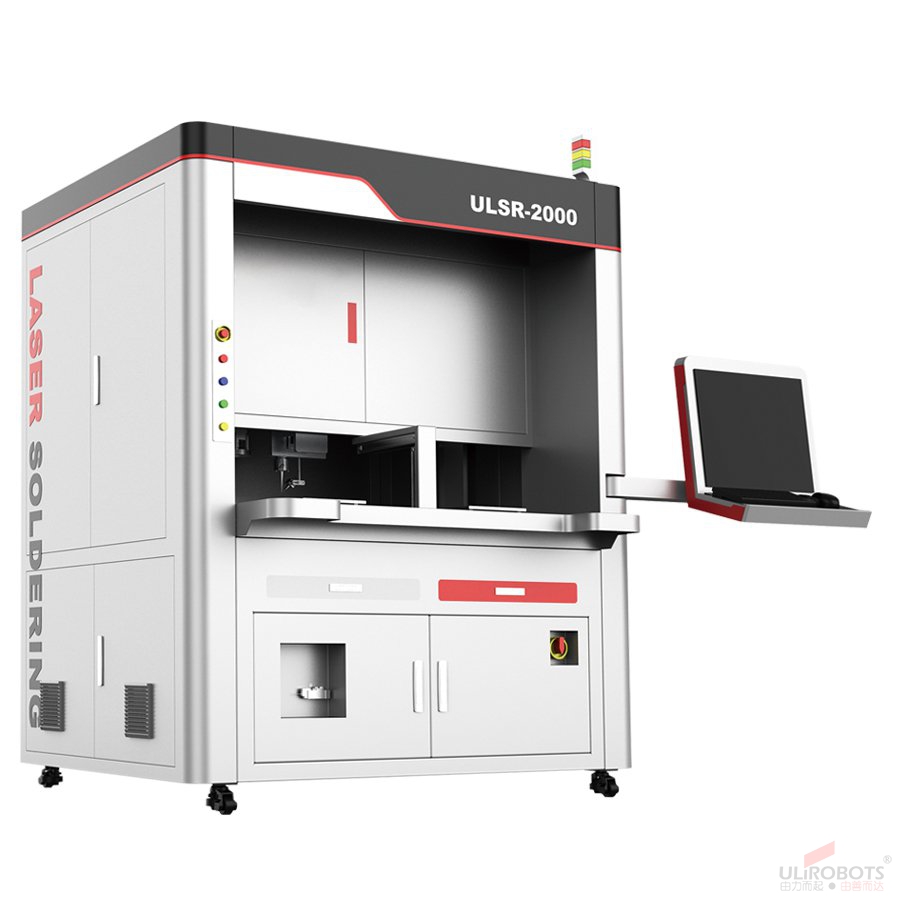

As a prominent leader in the field of laser soldering equipment, ULiLASER has accumulated extensive practical experience in the automotive lighting manufacturing sector, providing professional solutions to numerous well-known automotive brands. Its independently developed constant temperature closed-loop laser soldering equipment has undergone comprehensive optimization of process details, ensuring highly efficient daily production while achieving ultra-high output.
Outstanding Features of ULiLASER Laser Soldering Equipment
Precise Temperature Control: The equipment is equipped with a temperature control module possessing core technology and utilizes high-precision infrared temperature sensors for real-time temperature feedback and control, ensuring precise and controllable temperature during the soldering process, preventing thermal damage to the LED chip caused by temperature issues, and effectively improving product quality.
User-friendly Operating Software: The proprietary constant temperature laser soldering software allows users to call up and process different parameters based on varying soldering requirements; it is simple to operate, significantly enhancing production efficiency and flexibility.
Comprehensive Data Traceability Function: Data and video from the soldering process can be saved for traceability, facilitating monitoring and management of the production process, aiding in the timely identification and resolution of production issues, and providing reliable assurance for product quality.
Advantages of Laser Soldering Technology in Automotive LED Lighting Manufacturing
Non-contact Soldering: The soldering process requires no physical contact with LED light components, significantly reducing the potential risk of damage to sensitive electronic components, avoiding issues such as pressure damage, displacement, and oxidation and contamination that can occur with traditional soldering methods, protecting the integrity and functionality of the LED chip.
Ultra-high Precision: Capable of achieving micron-level precise control, meeting the requirements for tiny and complex soldering points within LED lights, ensuring the consistency and reliability of solder joints, thereby enhancing the performance and lifespan of the final product.
Efficient Production: Compared to traditional soldering methods, laser soldering is fast with a small heat-affected zone. It can significantly shorten the production cycle and increase production line throughput. Furthermore, the automated process of laser soldering technology reduces the need for manual re-inspection, lowers labor costs, and minimizes errors caused by human factors, further improving production process consistency and product yield.
Strong Adaptability: Can adapt to the soldering requirements of LED lights of various complex shapes and sizes, providing strong support for the innovative design and diversified production of automotive lighting.
Key Application Scenarios for Laser Soldering in Automotive Lighting Manufacturing
Precision Soldering: Suitable for precision soldering of internal components within LED lights, such as the connection between gold wire and the LED chip. As a bridge for electrical connection, the fineness and connection quality of the gold wire directly impact the electrical performance and reliability of the LED light. Laser soldering's high precision can ensure the stability of the connection.
Soldering of Heat-Sensitive Components: LED chips are sensitive to temperature; the characteristic of a small heat-affected zone in laser soldering effectively avoids thermal damage to the LED chip, ensuring the chip's performance and lifespan.
Soldering of Complex Structures: In automotive headlight DRL (Daytime Running Light) chip LED modules, high-density FPC (Flexible Printed Circuit Board) needs to be integrated with the LED board within a miniature space. ULiLASER's laser solder ball soldering machine utilizes five-axis simultaneous soldering technology, driven by imported linear motors, achieving a repeatability of ±0.02mm, supporting 3D path soldering for curved FPCs, meeting the soldering requirements for complex structures. Furthermore, through intelligent thermal management technologies such as gradient energy control and real-time infrared monitoring, the temperature rise of the AlSiC substrate is controlled within ΔT≤25℃, ensuring the LED chip junction temperature is ≤120℃, ensuring product reliability in harsh environments.
With the rapid development of intelligent driving and new energy vehicles, automotive headlights are evolving towards intelligent interaction and multi-modal sensing. ULiLASER will continue to leverage its deep expertise and innovation capability in the field of laser soldering technology to provide more advanced, efficient, and reliable solutions for the automotive lighting manufacturing industry, assisting automotive manufacturers in creating more competitive intelligent lighting products, and collectively promoting the innovation and development of automotive lighting technology.
