With Ten Years of Accumulated Technical Expertise, UliLASER is Reshaping the Standards for Automotive Camera Manufacturing

2025-04-10 10:11:05

I. Industry Pain Points: Why Does the Customer Complaint Rate for Automotive Cameras Remain High?

As the penetration rate of intelligent driving is projected to exceed 50% by 2025, the automotive camera, as a core sensor, has seen its installation rate per vehicle jump from an average of 4 units in 2020 to 10 units. However, traditional manufacturing processes face three critical flaws:

1. Mechanical Alignment Errors: Manual assembly leads to optical axis deviations exceeding 5 pixels, causing image distortion (accounting for 35% of complaints).

2. Soldering Defects: Conventional soldering iron processes result in a Heat-Affected Zone (HAZ) of up to 0.3mm. Issues like cold solder joints and short circuits constitute 40% of quality problems.

3. Inspection Blind Spots: The miss rate for 2D visual inspection is as high as 5%, failing to identify 3D morphological defects (such as porosity/voids and solder balling).

These issues directly contribute to an industry average customer complaint rate of 2.5%, with one leading manufacturer incurring annual after-sales costs exceeding RMB 300 million.

II. Technological Breakthrough: UliLASER's Integrated Three-in-One Solution

As a leader with 10 years of experience in the laser soldering field, UliLASER introduces China's first integrated system for automotive cameras combining AA (Active Alignment), Laser Soldering, and 3D DOI (Digital Optical Inspection) visual inspection. This manufacturing revolution is achieved through three core technologies:

1. Nanometer-Level Active Alignment (AA)

• Technical Principle: Utilizes a six-axis precision stage combined with high-precision laser displacement sensors to achieve an optical axis deviation between the lens and image sensor of < 1.5μm.

• Measured Data: Compared to traditional mechanical alignment, image center resolution is improved by 40%, and edge distortion rate is reduced from 8% to 2%.

• Application Case: A client's front-view camera module yield rate increased from 82% to 98%, with a 60% reduction in customer complaints.

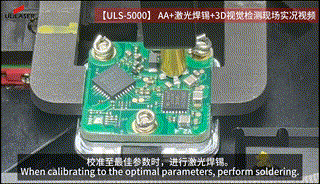

2. Laser Soldering Process Innovation




• Non-Contact Heating: Beam spot diameter of 0.1mm, HAZ < 0.05mm, completely eliminating component thermal damage.

• Closed-Loop Control: Real-time monitoring of soldering temperature, energy, and displacement ensures solder joint consistency reaches 99.7%.

• Multi-Material Compatibility: Supports dissimilar metal welding (e.g., copper, aluminum, nickel), meeting the demands for high-end automotive connectors.

• Core Advantages:





3. Efficiency Improvement: Single solder joint welding time reduced from 3 seconds to 0.8 seconds, increasing production capacity by 275%.




4. 3D DOI Vision Inspection System

• Micron-Level Precision: Employs the SmartRay JOSY system, achieving a 3D point cloud resolution of 0.03mm, capable of detecting 0.1mm porosity/voids.

• Full Process Coverage: Integrates AOI (Appearance Inspection), SPI (Solder Ring Inspection - Note: Often SPI refers to Solder Paste Inspection, clarification may be needed if this refers to post-solder joint/ring inspection), and AXI (X-ray Inspection), achieving a 100% defect detection rate.

• Data Closed Loop: Automatically generates SPC (Statistical Process Control) reports, facilitating process optimization. One client reduced their soldering defect rate from 1.2% to 0.05%.

• Technical Highlights:

III. UliLASER Equipment's Differentiated Value

1. A Decade of Technological Expertise

• Industry Experience: Serving sectors including consumer electronics, medical, and aerospace, with over 500 laser soldering units delivered cumulatively.

• Patent Portfolio: Holds 87 core patents in areas such as laser optics, motion control, and vision algorithms, with a process database covering over 300 material combinations.

2. Advantages of Integrated Design

• 60% Footprint Reduction: Traditional lines require separate AA stages, soldering machines, and inspection equipment. UliLASER's system completes the entire process within a single machine.

• 70% Labor Cost Reduction: Eliminates the need for manual loading/unloading and parameter adjustments, reducing production line personnel from 8 to 2 operators.

• Shortened ROI Period: One client increased monthly production capacity to 100,000 units, achieving annual cost savings exceeding RMB 20 million, resulting in an equipment investment payback period of only 14 months.

3. Automotive-Grade Verification

• Certification Compliance: Certified according to IATF 16949, ISO 10042 (Welding Quality Standards), and VDA 5 (Inspection Process Capability).

• Reliability Testing: The equipment operates continuously for 1000 hours without failure in environments ranging from -40°C to 85°C, meeting stringent automotive-grade requirements.

IV. Customer Validation: A Real-World Case of 80% Complaint Rate Reduction

After adopting the UliLASER solution, a global Top 3 automotive electronics supplier reported the following improvements:

V. Industry Trends and Policy Support

With the implementation of Beijing's "Regulations on Autonomous Vehicles" effective April 1, 2025, quality requirements for automotive-grade cameras will be comprehensively upgraded. The UliLASER solution not only complies with the ISO 26262 functional safety standard but also meets the Safety of the Intended Functionality (SOTIF) requirements through its 3D vision inspection, assisting automotive companies in passing validation using ASAM OpenSCENARIO scenario libraries.

VI. Take Action Now: Secure a Leading Position in the Intelligent Driving Industry

UliLASER is now offering a complimentary process validation service, including:

• Sample Testing: Free full-process testing (AA alignment, soldering, inspection) for 50 camera module samples.

• ROI Analysis: Customized Return on Investment (ROI) modeling based on client production data.

• Production Line Planning: On-site assessment by our senior engineering team, providing recommendations for smart factory transformation.

Achieve:

• 80%+ Reduction in Customer Complaint Rate

• 30%+ Reduction in Overall Costs

• 200%+ Increase in Production Capacity
