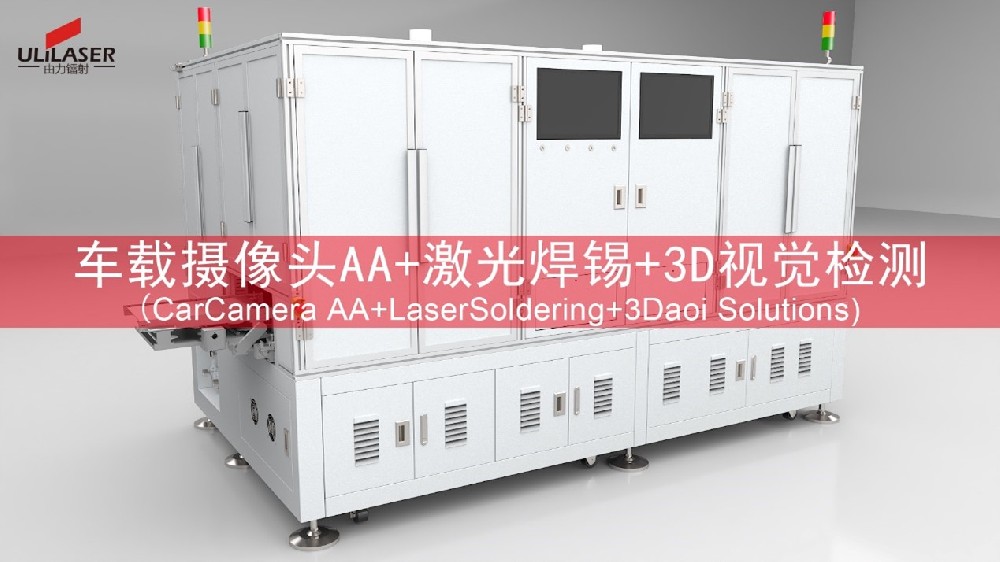

AA+laser soldering+3Daoi Solutions: secret to the double leap of car camera production capacity and yield rate
In the current booming development of smart cars, the importance of in car cameras as the "eyes" of vehicles is self-evident. With the explosive growth in demand for car cameras in the market, how to improve production capacity and yield has become a key issue that urgently needs to be addressed in the industry. The collaborative application of AA (Active Alignment) technology, laser soldering technology, and 3D visual inspection technology provides a perfect solution to this problem, which can be regarded as the secret to achieving a double leap in production capacity and yield rate of car cameras.
AA technology: precise positioning, laying the foundation for high yield rate
AA technology plays a crucial role in the manufacturing process of car cameras. The traditional camera assembly adopts a passive alignment method, relying on high-precision molds and parts processing to achieve alignment of optical components. This method is not only expensive, but also difficult to meet the increasing demand for high precision. AA technology breaks this limitation by dynamically adjusting the position of optical components through real-time monitoring and feedback to achieve optimal optical performance.
During the assembly process of car cameras, AA technology can accurately align the image sensor with the lens. By detecting parameters such as image clarity and distortion, the system can automatically calculate the optimal position of optical components and make fine adjustments through precise mechanical devices. This process greatly improves the imaging quality of the camera and effectively reduces the defect rate caused by optical component alignment deviation. According to relevant data statistics, after adopting AA technology, the yield rate of car cameras can be increased to over 95%, which is a qualitative leap compared to traditional methods.
In addition, AA technology can also improve production efficiency. Due to its automated alignment process reducing manual intervention, the production cycle has been significantly shortened. In large-scale production, this advantage is particularly evident, as it can significantly increase production capacity and meet the growing demand for in car cameras in the market.
Laser Soldering Technology: Efficient Welding, New Power to Improve Production Capacity
Laser soldering technology, as an advanced welding process, has demonstrated unique advantages in the manufacturing of car cameras. Traditional welding methods such as wave soldering and reflow soldering have problems such as low welding accuracy and large thermal impact range, which can easily damage sensitive components of cameras and affect product quality. Laser soldering technology overcomes these drawbacks.
Laser soldering utilizes a high-energy density laser beam to instantly melt the solder, achieving high-precision welding. Its welding process is fast and precise, capable of completing welding tasks in a very small space, effectively avoiding thermal damage to surrounding components. In the production of car cameras, laser soldering technology can be used to connect key parts such as image sensors and circuit boards. Due to its fast welding speed, it greatly improves production efficiency. Compared with traditional welding methods, laser soldering can shorten the welding time of a single camera to one-third or even shorter, significantly improving overall production capacity.
Meanwhile, the high-precision welding of laser soldering ensures the quality stability of the solder joints. Its welding points are firm and highly reliable, reducing product failures caused by poor welding and further improving the yield rate. By precisely controlling the energy and welding time of the laser, consistent welding results can be achieved, meeting the strict requirements of car cameras for high-quality welding.
3D visual inspection technology: comprehensive inspection to ensure product quality
3D visual inspection technology provides a comprehensive and high-precision solution for quality inspection of vehicle cameras. In the production process, even with advanced assembly and welding techniques, various subtle defects may still occur, such as part offset, solder joint virtual welding, appearance defects, etc. If these defects are not detected and eliminated in a timely manner, they will affect the performance and reliability of the camera.
The 3D visual inspection system can obtain three-dimensional data information of the product by scanning and imaging the car camera from multiple angles. By utilizing advanced algorithms to analyze these data, the system can accurately detect dimensional deviations, surface defects, and the integrity of the internal structure of the product. For example, for the assembly of camera lenses, 3D visual inspection can accurately determine whether the lens is installed in place, whether there are issues such as tilt or eccentricity; For solder joints, it is possible to detect the size, shape, height, and presence of defects such as virtual soldering.
Compared with traditional 2D detection methods, 3D vision detection has higher detection accuracy and more comprehensive detection capabilities. It can detect hidden defects that cannot be detected by 2D detection, effectively improving the accuracy and reliability of detection. Through real-time online detection, the 3D vision inspection system can promptly detect problems in the production process and provide feedback to the production equipment for adjustment, thereby avoiding the generation of a large number of defective products and further ensuring the yield rate of products.
In practical applications, 3D visual inspection technology can be seamlessly integrated with AA technology and laser soldering technology. After AA technology completes the alignment of optical components, the 3D vision inspection system can immediately inspect the assembled camera to ensure that the alignment accuracy meets the requirements; After laser soldering is completed, 3D inspection is performed again to ensure the quality of the solder joints. This integrated production testing process greatly improves production efficiency and product quality.
Synergy effect: Double leap in production capacity and yield rate
AA technology, laser soldering technology, and 3D visual inspection technology do not exist in isolation. The synergy between them is the core to achieve a double leap in production capacity and yield rate of car cameras.
AA technology provides a good welding foundation for laser soldering through precise alignment of optical components. While ensuring optimal optical performance, it also makes the welding process more stable and reliable, reducing welding defects caused by component position deviations. The efficient welding of laser soldering technology provides a guarantee for the rapid adjustment of AA technology, and the two work together to greatly shorten the production cycle of a single camera and improve production capacity.
3D visual inspection technology runs through the entire production process, from optical component inspection after AA technology completion, to solder quality inspection after laser soldering, and finally to overall quality inspection of the final product. It provides comprehensive quality monitoring for the production process. By providing timely feedback on detection results, the 3D vision inspection system can help production equipment quickly adjust parameters, optimize production processes, and effectively ensure product yield while increasing production capacity.
In actual production, the advantages brought by this synergistic effect are very significant. Taking a car camera manufacturing enterprise as an example, after introducing the AA+laser soldering+3D vision inspection technology system, its production capacity has increased by more than 200%, and the yield rate has increased from around 80% to over 98%. Enterprises can not only meet the market's demand for product quantity, but also stand out in fierce market competition with high-quality products.
Looking ahead to the future: continuous innovation, leading the development of the industry
With the continuous advancement of smart car technology, the performance requirements for in car cameras are also constantly increasing. AA、 Laser soldering and 3D vision inspection technology, as key technologies for improving the production capacity and yield of car cameras, will continue to develop through continuous innovation.
In terms of AA technology, it will develop towards higher precision and faster speed in the future. New algorithms and control technologies will continue to emerge, further improving the alignment efficiency and accuracy of optical components to meet the needs of higher pixel and more complex optical systems. Laser soldering technology will not only improve the stability of welding quality, but also further reduce costs and expand its applications in more fields. At the same time, the development of new laser sources and welding materials will also bring new breakthroughs to laser soldering technology.
3D visual inspection technology will become more intelligent and automated. Deep learning and other artificial intelligence technologies will be widely applied in detection algorithms, enabling systems to more accurately identify and classify various defects, and achieve adaptive detection. In addition, the detection speed and accuracy will be further improved to meet the strict requirements for product quality inspection on high-speed production lines.
The collaborative application of AA+laser soldering+3D visual inspection technology has brought opportunities for a double leap in production capacity and yield rate to the car camera industry. In the future, with the continuous innovation and improvement of these technologies, the car camera industry will surely usher in even more brilliant development, providing solid technical support for the popularization and development of smart cars.
