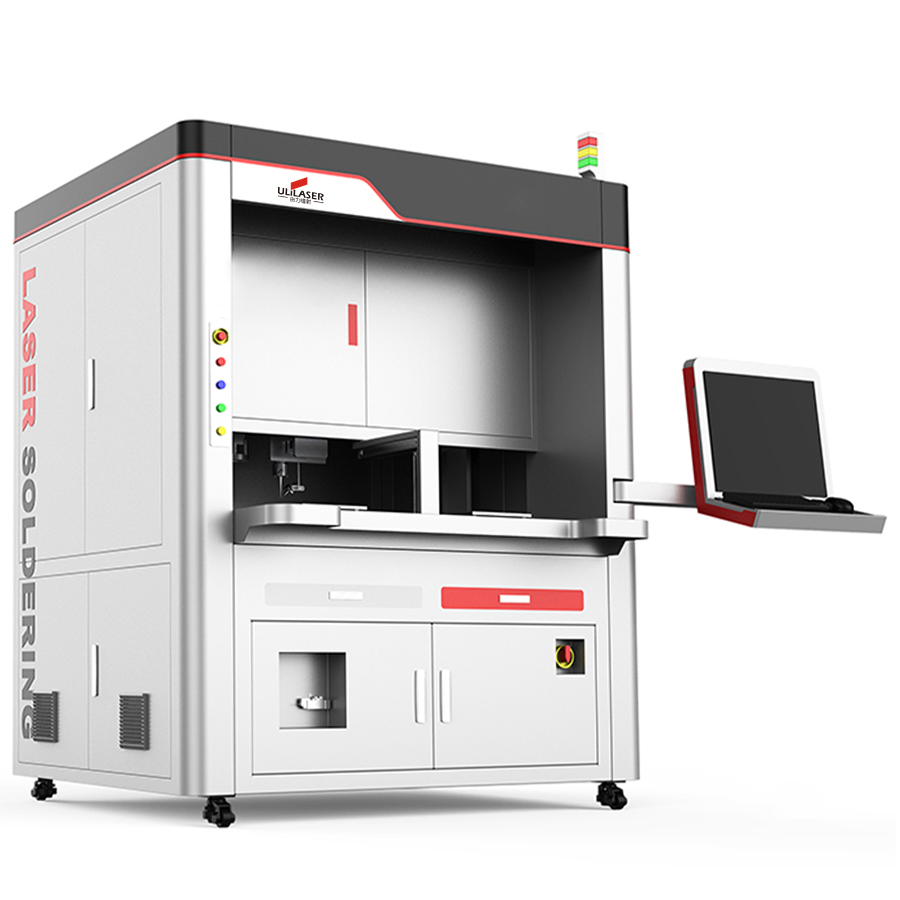

Soldering ball laser machine
Model No.：
ULSR-1000
Description：
The constant temperature precision laser tin welding machine is a standard tin wire welding/solder paste welding equipme···
Features：
-PC control, visual operation. High definition CCD camera with automatic CCD positioning;-A temperature control module w···
Contact Us NowService Hotline：+86-18217018301
The constant temperature precision laser tin welding machine is a standard tin wire welding/solder paste welding equipment, mainly composed of an automatic tin wire/solder paste feeding device, which can adopt a dual Y configuration or integrate AOI detection function, infrared real-time temperature feedback system, CCD coaxial positioning system, and semiconductor laser. The independently developed constant temperature laser soldering software achieves layered processing of processing parameters for different solder joints and heights, ensuring one-time processing completion. At the same time, it can monitor the completion status of welding in real time during the welding process. PID online temperature regulation feedback system can control constant temperature welding, improve welding yield and efficiency.
Machine size: 1200x1200x1815mm
Total power: 1.0kW
Total weight: 480kg
Effective itinerary: 600x600x150 (X, Y1 "Y2, Z)
Input voltage: 220 AC 50/60Hz
Input air pressure: 0.6-0.8Mpa
Drive mode: servo motor
Positioning accuracy: ± 0.01mm
Maximum load: 30kg
Control System: ULiLASER Closed Loop Laser Control System
Programming method: IPC
Customized size: Supports customization
Laser brand: MG/ULiLASER
Wavelength: 915 ± 10nm
Power: 80W (60/100/130/150/200W optional)
Fiber diameter: 100um, 200um, 400um
Temperature control: closed-loop temperature feedback control system
-PC control, visual operation. High definition CCD camera with automatic CCD positioning;
-A temperature control module with core technology and high-precision infrared temperature detectors for real-time temperature feedback and control;
-Non contact welding, no mechanical stress damage, fast heating rate, and reduced thermal effects;
-Laser, CCD， Temperature measurement, coaxial indication light, solves the problem of multiple optical paths overlapping in the industry and reduces complex debugging;
-The self-developed constant temperature laser soldering software enables different parameter calling and processing, making it convenient to use;
-The fully modular design of the optical system, motion unit, and control system improves system stability and facilitates maintenance;
-Welding process data and videos can be saved and traced;
(Can integrate various specifications of laser controllers and laser heads)
