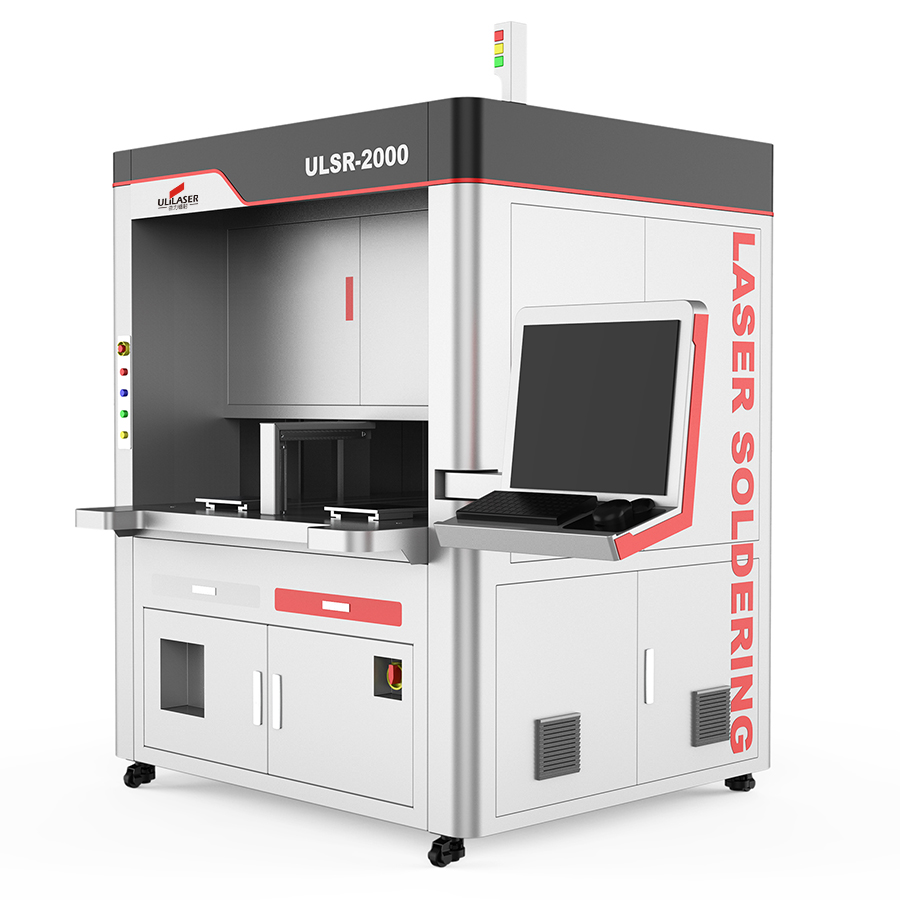

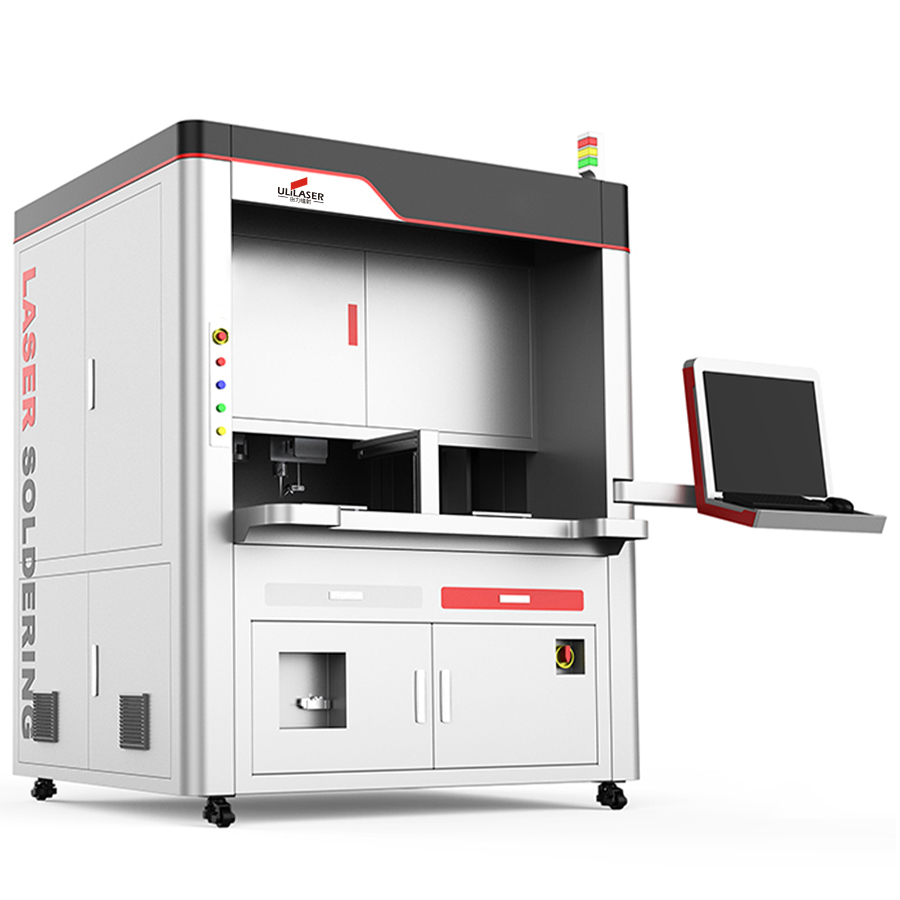

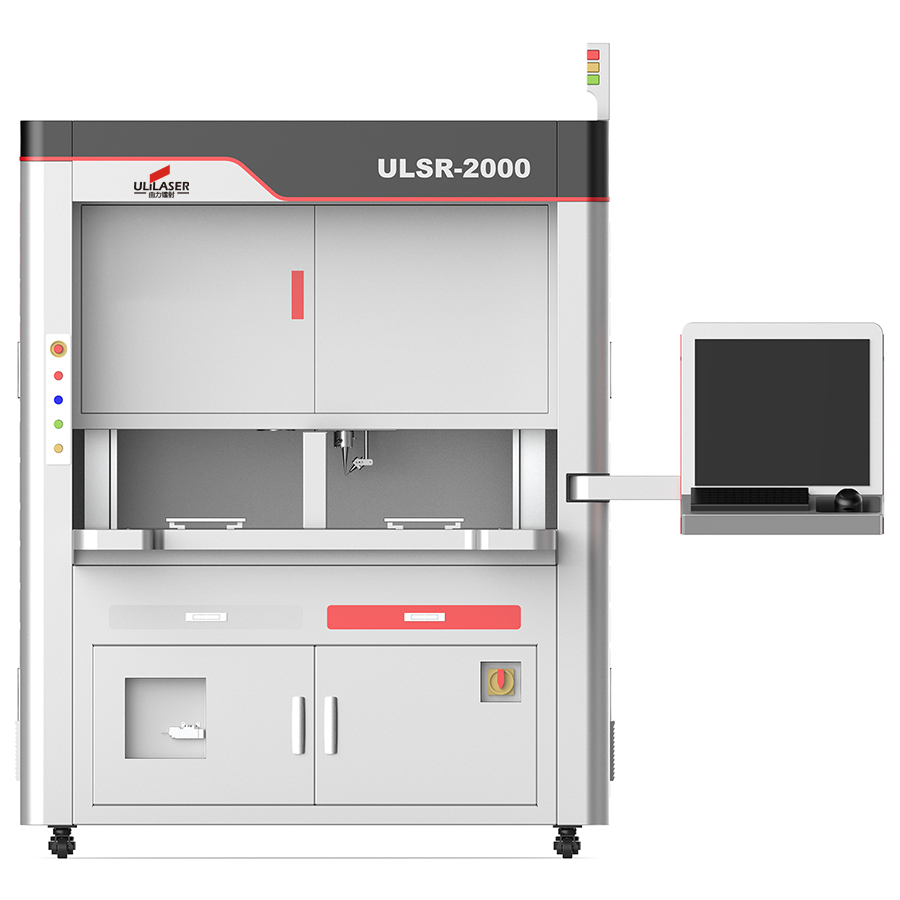

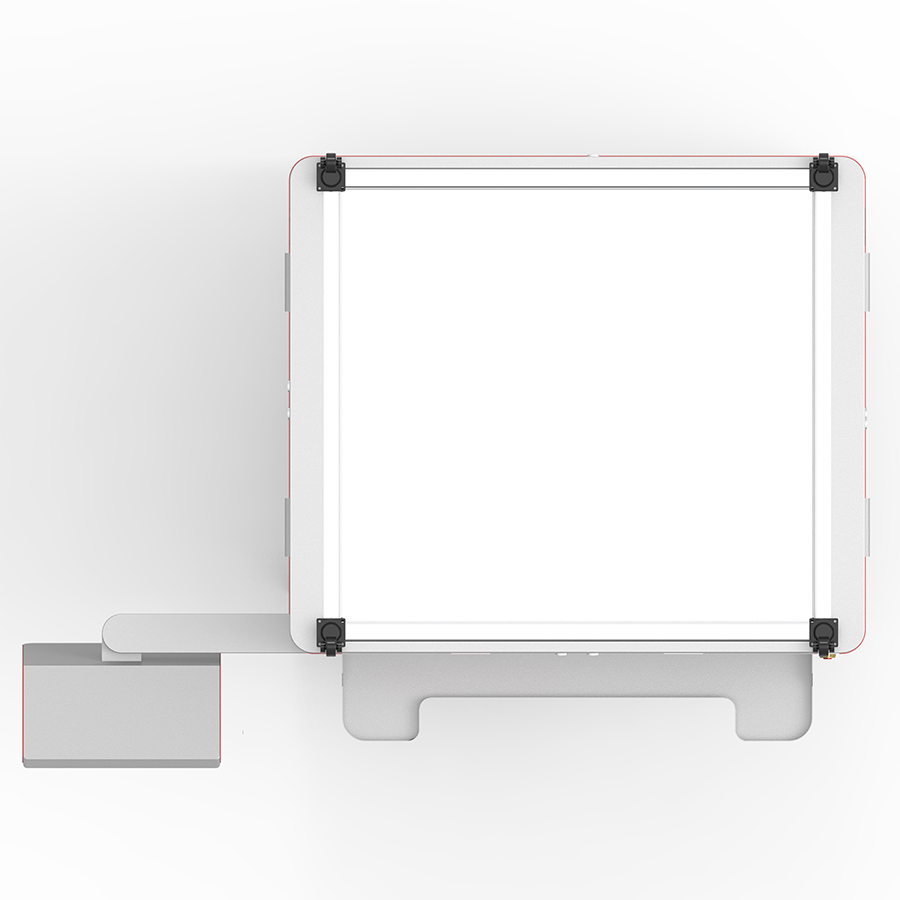

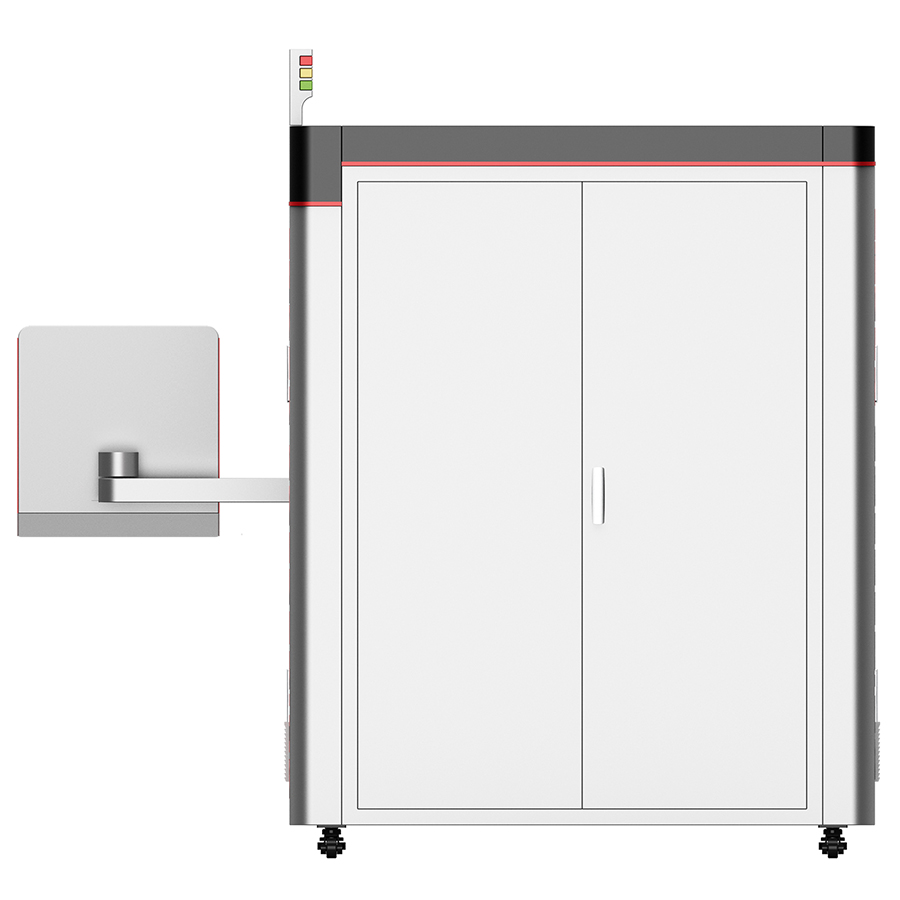

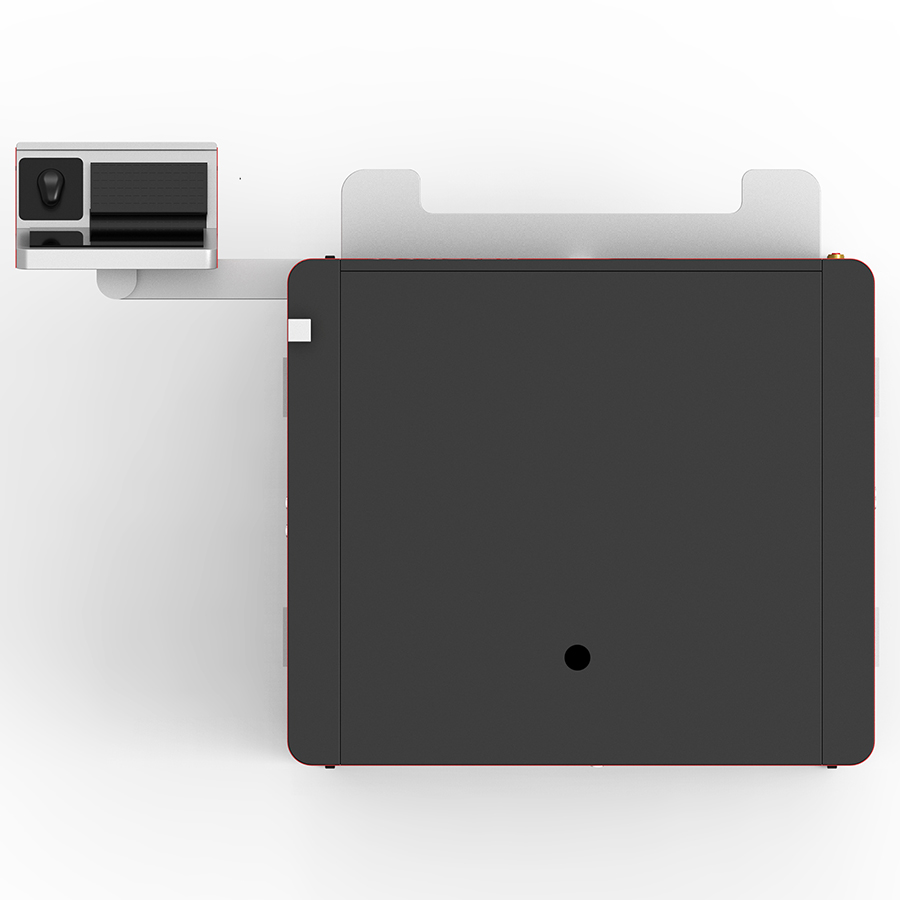

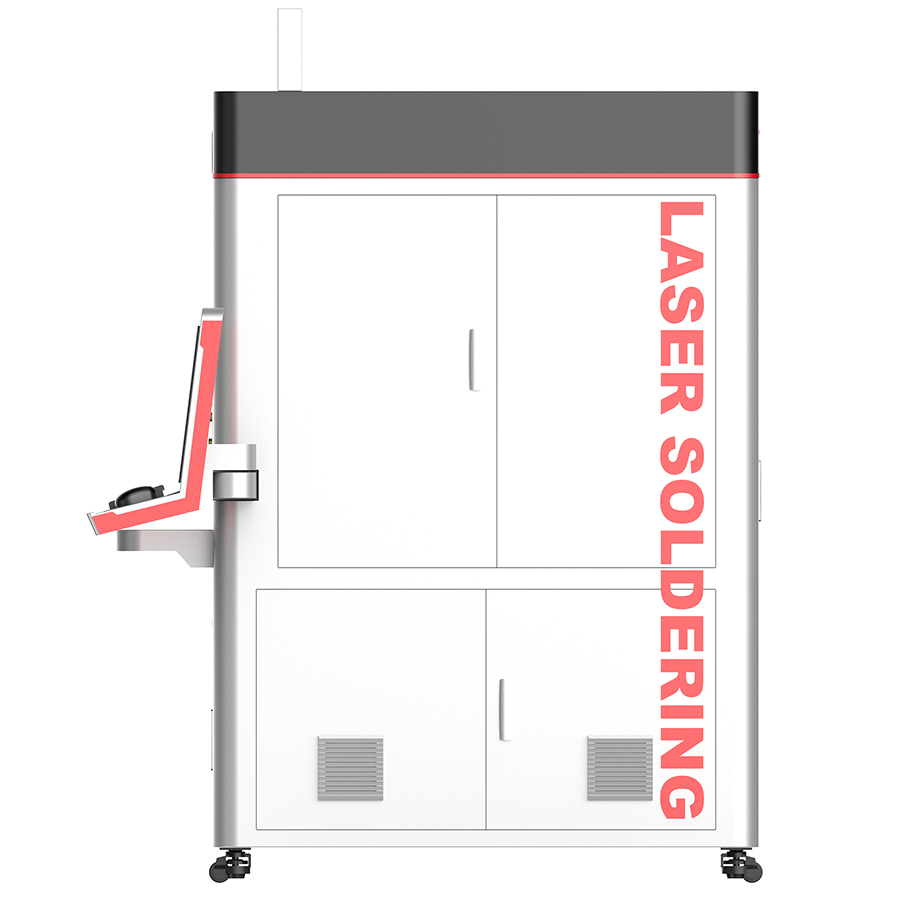

Machine size: 1200x1200x1815mm

Total power: 1.0kW

Total weight: 480kg

Effective itinerary: 600x600x150 (X, Y1 "Y2, Z)

Input voltage: 220 AC 50/60Hz

Input air pressure: 0.6-0.8Mpa

Drive mode: servo motor

Positioning accuracy: ± 0.01mm

Maximum load: 30kg

Control System: ULiLASER Closed Loop Laser Control System

Programming method: IPC

Customized size: Supports customization

Laser brand: MG/ULiLASER

Wavelength: 915 ± 10nm

Power: 80W (60/100/130/150/200W optional)

Fiber diameter: 100um, 200um, 400um

Temperature control: closed-loop temperature feedback control system

-PC control, visual operation. High definition CCD camera with automatic CCD positioning;

-A temperature control module with core technology and high-precision infrared temperature detectors for real-time temperature feedback and control;

-Non contact welding, no mechanical stress damage, fast heating rate, and reduced thermal effects;

-Laser, CCD， Temperature measurement, coaxial indication light, solves the problem of multiple optical paths overlapping in the industry and reduces complex debugging;

-The self-developed constant temperature laser soldering software enables different parameter calling and processing, making it convenient to use;

-The fully modular design of the optical system, motion unit, and control system improves system stability and facilitates maintenance;

-Welding process data and videos can be saved and traced;

(Can integrate various specifications of laser controllers and laser heads)
