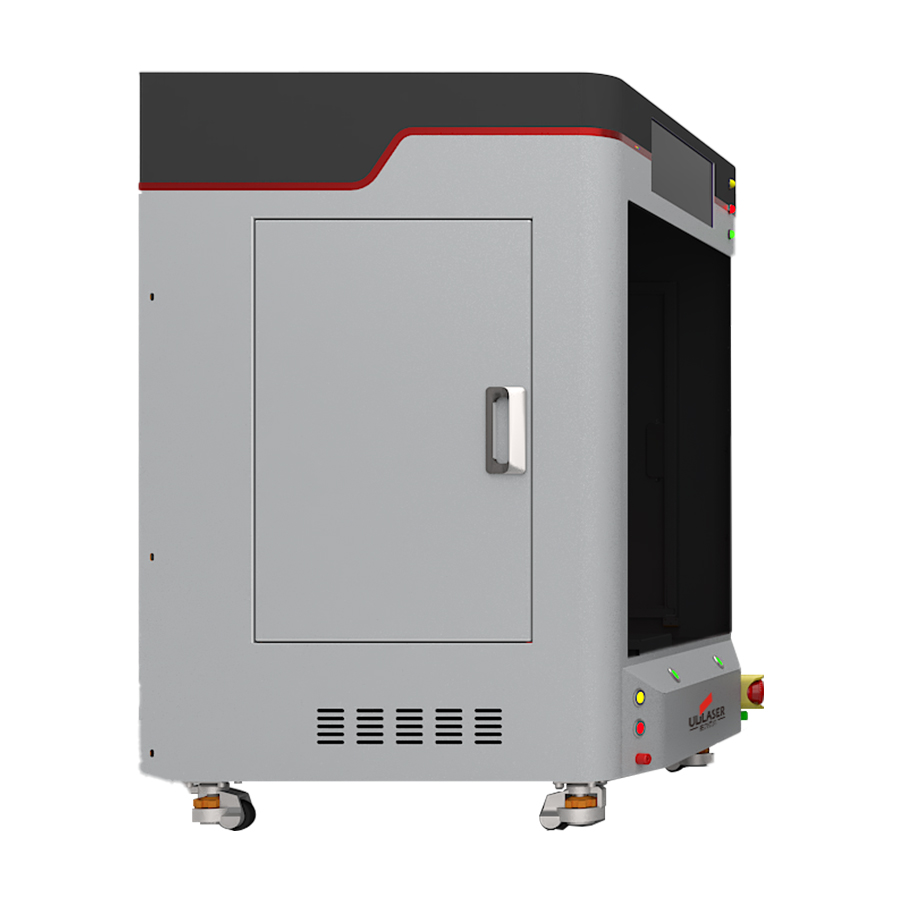

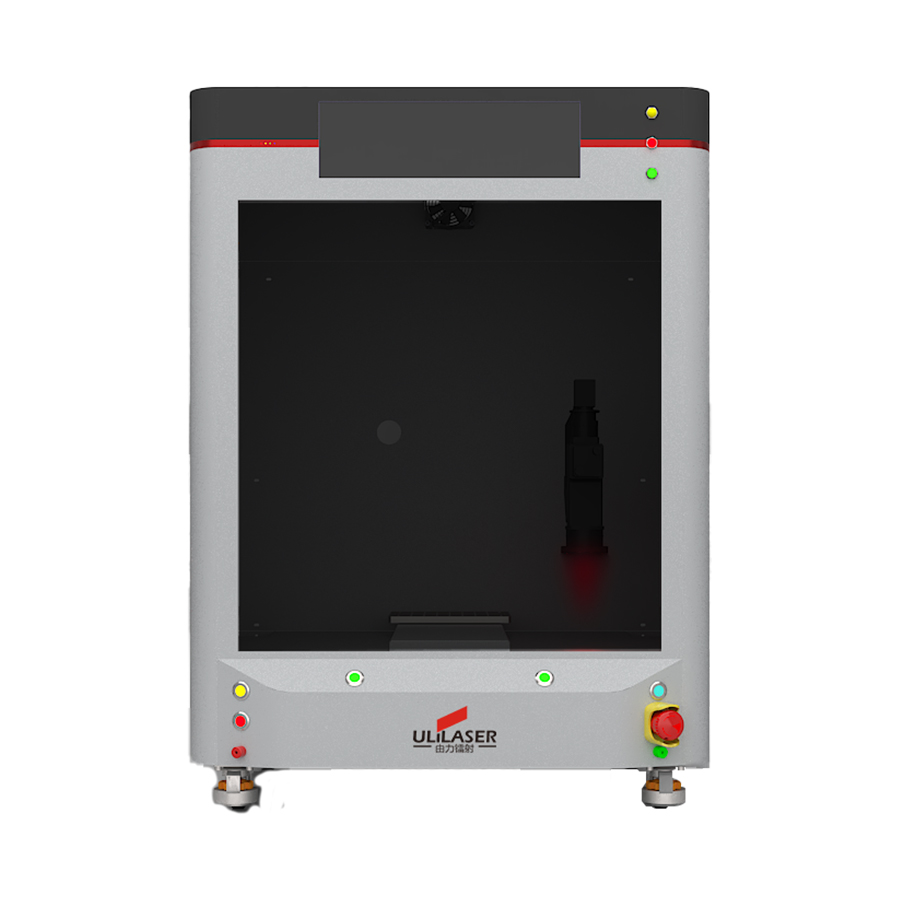

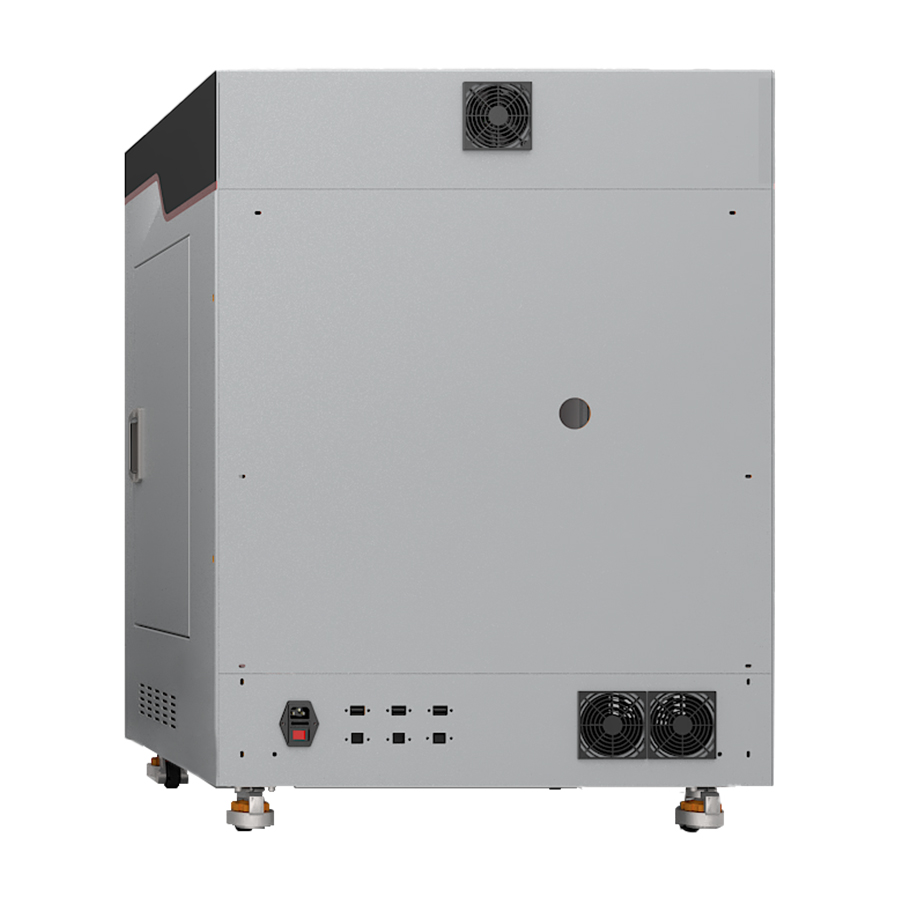

Desktop laser wire soldering machine
Model No.：
USR-401
Description：
The weight is reduced compared to standard floor standing equipment, making it more flexible to use on a workbench. The ···
Features：
-The X-Y-Z axis is linked with the wire feeding axis to achieve one-time processing of different welding points and weld···
Contact Us NowService Hotline：+86-18217018301
The weight is reduced compared to standard floor standing equipment, making it more flexible to use on a workbench. The self-developed constant temperature laser soldering software can achieve layered processing of processing parameters for different solder joints and heights in one processing, and can also monitor the completion of operations in real time during the welding process. PID online temperature regulation feedback system can control constant temperature welding, improve welding yield and precision.
Machine Size：700x600x900mm
CCD Field Of View：12.8x9mm
Spot Range：0.18-50mm
Cooling Method：Water cooling/forced air cooling
Effective Stroke：400x400x150mm
Input Voltage:220V AC 50/60Hz
Input Air Pressure:0.6-0.8Mpa
Drive Mode:Motion control card
Positioning accuracy:±0.02mm
Maximum Load：30kg
Control System：ULiLASER close-loop laser control system
Programming method:IPC
-The X-Y-Z axis is linked with the wire feeding axis to achieve one-time processing of different welding points and welding points at different heights;
-PC control, visual operation. High definition CCD camera with automatic positioning, meeting the requirements of high-precision device automatic processing and reducing manual intervention;
-A temperature control model with core technology and the use of high-precision infrared temperature detectors for real-time temperature feedback and control;
-Non contact welding, no mechanical stress damage, fast heating rate, and reduced thermal effects;
-Laser, CCD， Temperature measurement, coaxial indication light, solves the problem of multiple optical paths overlapping in the industry and reduces complex debugging;
-The self-developed constant temperature laser soldering software enables different parameter tuning and processing, making it convenient to use;
-The fully modular design of the optical system, motion unit, and control system improves system stability and facilitates maintenance.
