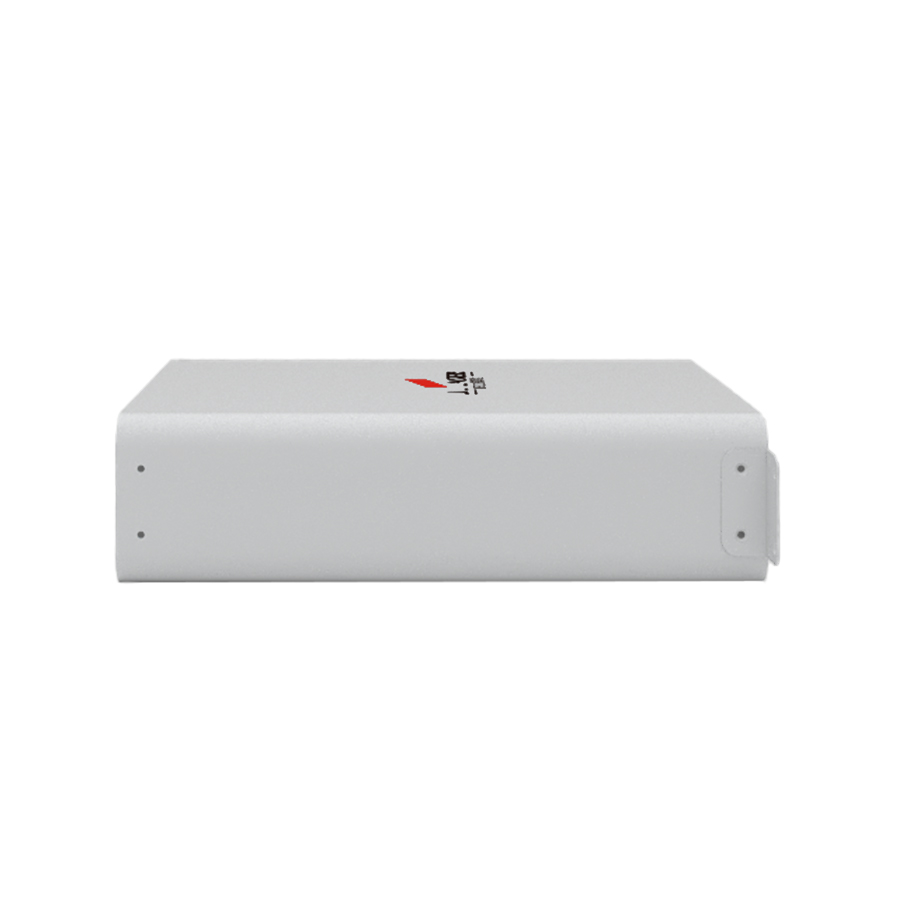

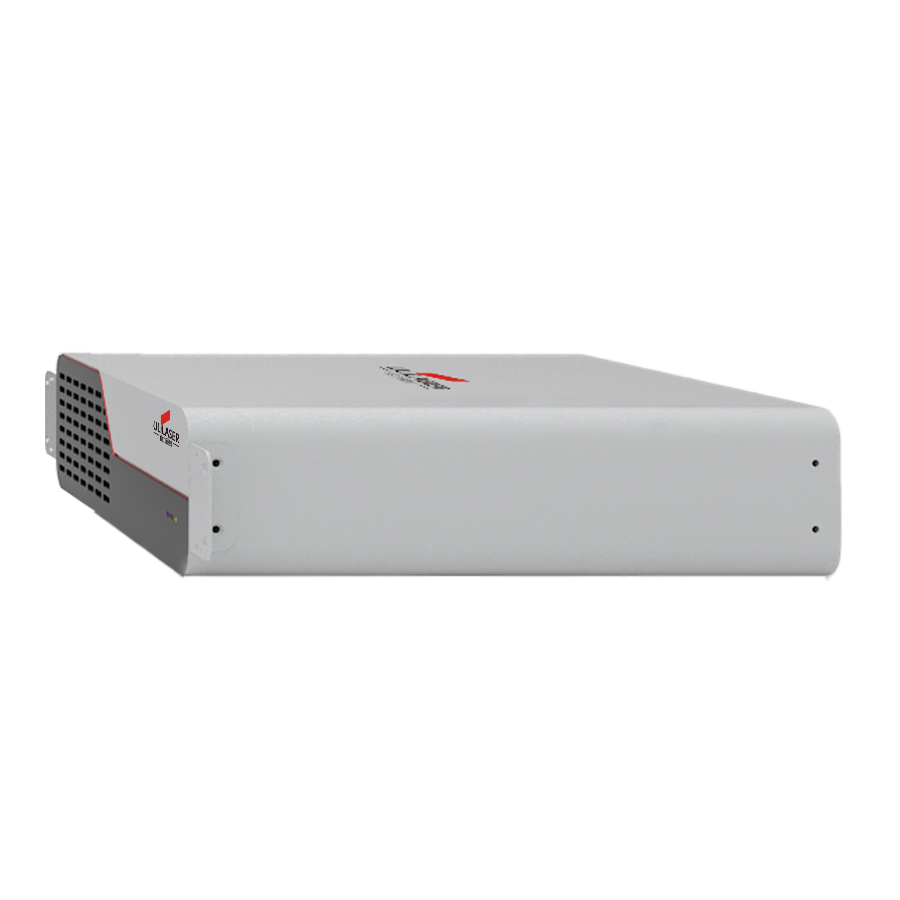

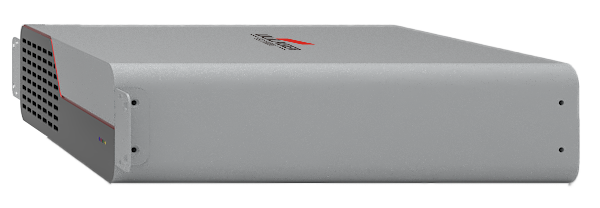

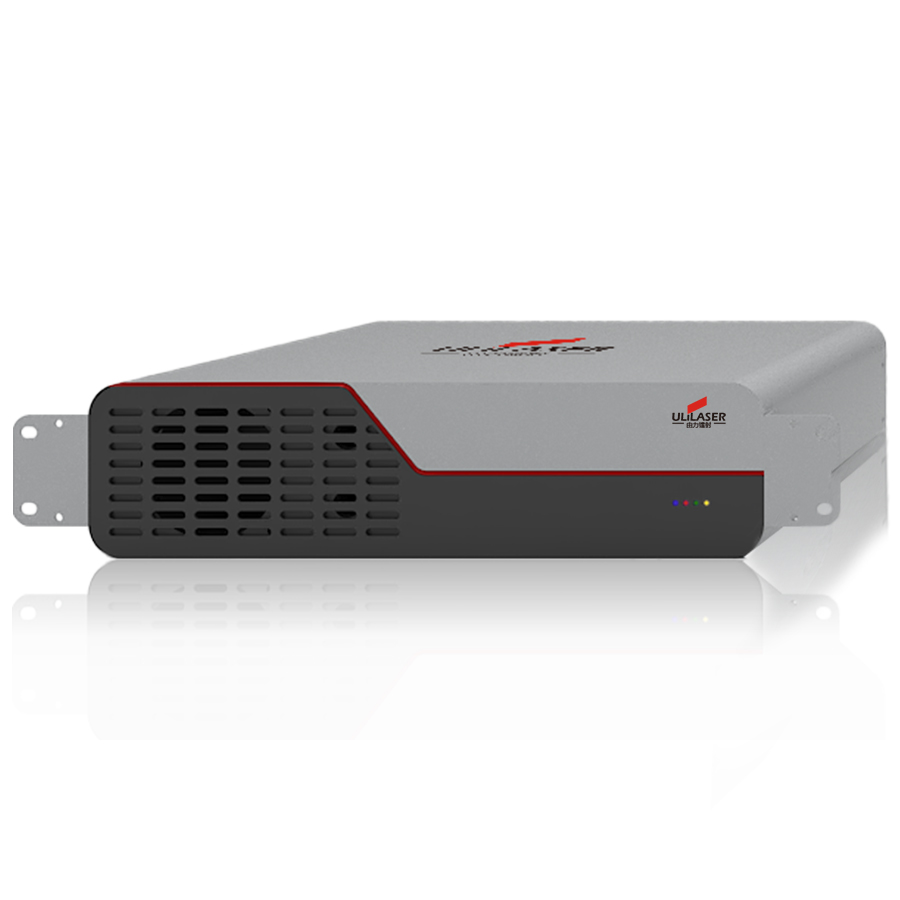

Model: ULM-80/100/150/200

Laser safety:Laser class 4 (according to DIN EN 60825-1 Safety of laser products)

Wavelength:915nm/others on request

Laser type:fiber coupled diode laser

Spot size in focus:depending on optics in use (typical @100mm distance, 2x diameter of fiber)

Rise time:0.1ms

Operation mode:cw, continous wave

Power:80W/100W/150W/200W(Optional)

Power Control:0V - 10V (0% -100%) analog IN

Power supply:220VAC ( 100VAC - 240VAC)

Interface:Ethernet

IO terminal :7 analog IN, 6 analog OUT

Data storage:internal

Software:

Includes software packages for temperature measurement and closed-loop

control, instant storage and visualization of temperature measurement, CCD

positioning system, etc

Optical fiber length: 5m / others on demand

Fiber core diameter:100μm、200um、400μm

Guiding light parameters:650nm±10nm(Optional)

Ambient

temperature:+5°C to +35°C for operation, no condensation

Temperture ranges:100°C - 600°C

Spectral range:1hz（1.65μm - 2.3μm）/2hz 2.3μm

Accuracy(e=1, t90=1s, T=25°C):bleow1500°C : 0.3% +/- 2K 1500°C

Repeatability:0.1% 或+/- 1K

Resolution:0.1°C

Response time:1ms

Optical fiber length: 3m, 5m(

Fiber optic NA:0.22

Output interface type:SMA908/D80

Control method: closed-loop control with temperature feedback

Cooling method: air cooling+water cooling

Operation mode: continuous/adjustable

*low temperature version：Any optical part installed in the beamway for coaxial measurement can affect given technical data

- Constant temperature control for laser processing, real-time monitoring of the temperature at the laser processing point, internal closed-loop feedback, good welding stability, and strong adaptability;

-PID algorithm, with rapid response, is less prone to burn out solder joints;

- Self-tuning control to avoid poor control caused by manual tuning of PID parameters (optional);

-Based on the welding model, an internal welding model can be constructed for optimal control, achieving ideal curved welding;

- Internal circulation water cooling addresses the bulky issue of external water chillers and the insufficient heat dissipation of pure air cooling;

-High-speed tracking response of laser power control voltage, TTL light output signal, compatible with all laser processing software;

- Online real-time power detection ensures ultra-stable power output from the laser.
